Description

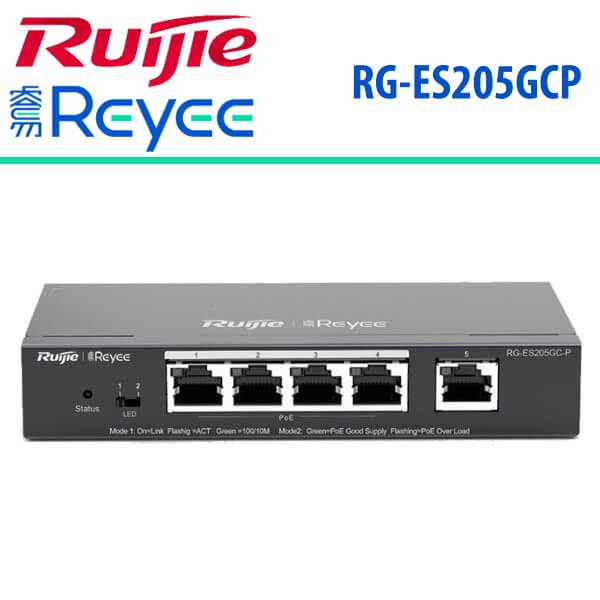

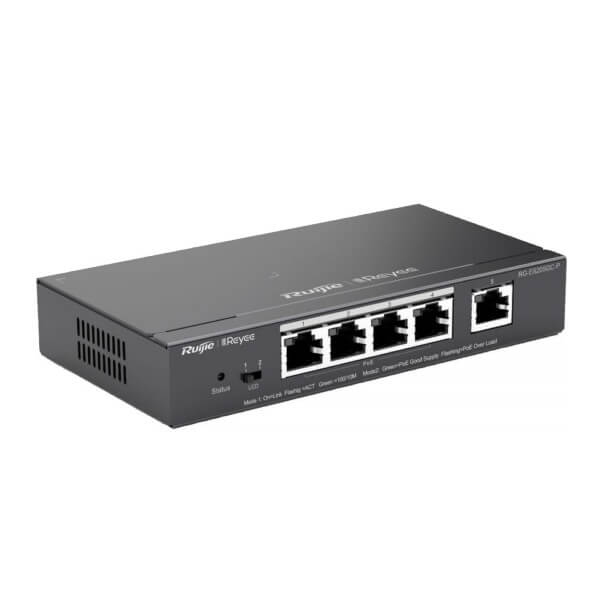

Ruijie RG-ES205GCP Network Switch Dubai
Ruijie Reyee smart surveillance switches come with a range of port options to cater to different video surveillance networks. The Ruijie RG-ES205GCP Networkswitch Dubai model ensures that all cameras can be powered simultaneously by offering full-power PoE output, even when the switch is functioning at maximum capacity. Additionally, the Ruijie Real-easy Series smart surveillance switches provide user-friendly management features. The Ruijie RG-ES205GCP Networkswitch Dubai are designed for easy installation, requiring no additional configuration as they come with default factory settings. This allows for quick identification of surveillance network issues, PoE port restarts, VLAN configurations, and more. Moreover, the Ruijie Cloud app and Ruijie Cloud platform support remote management, making surveillance network operations and maintenance simpler and more convenient. This, in turn, helps to reduce overall operation and maintenance costs.
Features
- Auto-provisioning via Self-Organizing Networking : The ES200 Smart series switches realize industry-leading auto-discovery and auto-networking features for gateways, switches, and wireless
- Ruijie Cloud management : Remote failure alerts, one-click operations, loop prevention, real topology and maintenance on the Ruijie Cloud App
- NVR / Camera identification
- Reboot PoE ports with one click remotely on Ruijie Cloud app
- Full Gigabit ports : Meet the needs of 200M xDS/fiber access, high-speed wired connection
- Ruijie RG-ES205GCP Dubai supports Plug and Play with Zero Configuration
- Support full capacity POE, PoE camera at full capacity
- Automatically adjust PoE power for safety and energy saving
- High compatibility for network cable
- High surge protection for device stability
- Fast fault locating
- Configure VLANs as required
- Mobile App / Ruijie Cloud Platform Remote Management NVR / Camera Identification
- Multiple deployment methods Enables rapid project management
Technical Specifications
| Hardware specifications | |
| Ports |
|
| Maximum output power per PoE port | 30W |
| Maximum PoE output power per switch | 54W |
| Switching capacity | 10Gbps |
| Packet forwarding rate | 7.44Mpps |
| Surge protection | Common mode : 4KV |
| Electrostatic discharge | Air discharge : 6KV |
| Contact discharge : 4KV | |
| Power consumption | 60W |
| Power supply | External power adapter |
| Dimensions (W x D x H) | 148*78*26mm |
| MTBF | >200K CZK |
| Operating environment | |
| Operating temperature | 0 to 40°C |
| Storage temperature | -40~70ºC |
| Operating humidity | 10% to 90% RH |
| Storage humidity | 5% to 95% RH |
| Software features | |
| MAC capacity | 2K CZK |
| Static MAC address | 16 |
| VLANs | Support 802.1Q VLAN |
| Port management |
|
| Security | Support broadcast storm suppression, port speed limit, port isolation |
| L2 features | Support port mirroring, loop protection, cable detection |
| Management | Support management and configuration through web management interface, Ruijie Cloud platform and Ruijie Cloud app |
