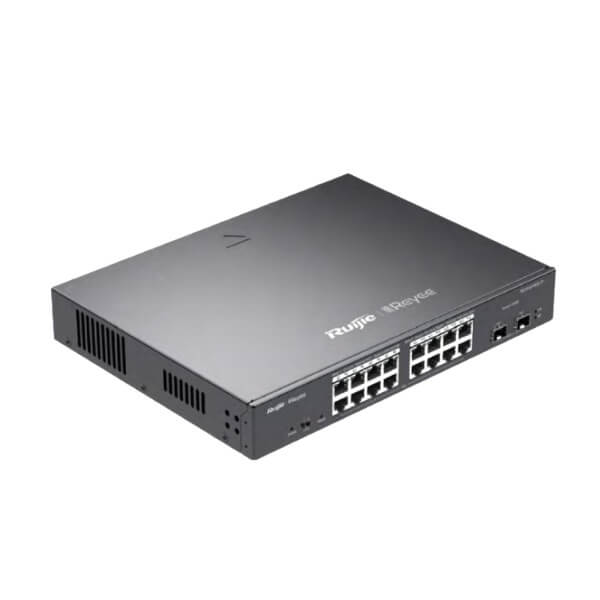

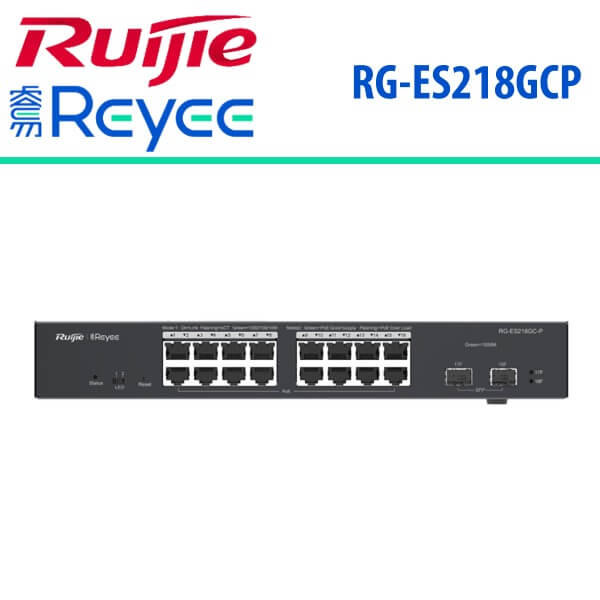

Ruijie RG-ES218GCP Network Switch Dubai
The Ruijie RG-ES218GCP Dubai enables simultaneous power supply to all connected cameras through full power PoE output. This switch boasts cutting-edge auto-discovery and auto-networking capabilities for gateways, switches, and wireless devices. Additionally, the Ruijie Reyee Series smart monitoring switches offer user-friendly management features and seamless plug and play with factory default settings, allowing for easy identification, debugging, network monitoring, port restarting, and VLAN configuration through Ruijie’s cloud app. The Ruijie Cloud mobile and remote management app is also compatible with this switch, providing a convenient and cost-effective solution for monitoring network operations and maintenance. With Self-Organizing Network Auto-provisioning, the Ruijie RG-ES218GCP Dubai switches deliver top-of-the-line auto-discovery and auto-networking functionality for gateways, switches, and wireless devices. This specific model includes an SFP Port as the port uplink. If all 16 ports are utilized with LAN RJ45, a Gigabit SFP Module must be used. Configuration management, including monitoring device status such as port up/down, POE power supply, and traffic, can be easily managed through the Ruijie Cloud platform, accessible both via browser and the smartphone app.
Features
- Plug and Play with Zero Configuration
- Support full capacity POE, PoE camera at full capacity
- Automatically adjust PoE power for safety and energy saving
- High compatibility for network cable
- High surge protection for device stability
- Fast fault locating
- Configure VLANs as required
- Mobile App / Ruijie Cloud Platform Remote Management NVR / Camera Identification
- Multiple deployment methods Enables rapid project management
Plug and Play with Zero Configuration
Under factory default state, the Ruijie RG-ES218GCP Dubai require zero configuration after plugged in. The video surveillance network can be set up quickly after connecting the switch to the cameras and DVR correctly.
Full-power PoE Supporting PoE Cameras at Maximum Capacity
RG-ES218GCP Dubai support full-power PoE output, powering PoE network cameras for all PoE ports simultaneously. Whether it is day or night, the infrared light of the camera is on or off, it can ensure that all PoE network cameras are powered.
Auto PoE Power Adjustment for Safety and Energy Saving
Equipped with PoE port the Ruijie RG-ES218GCP Dubai support 802.3af and 802.3at, providing up to 30W power supply to the connected device. The switches will negotiate with the connected devices to automatically adjust the PoE power, thereby saving energy. In addition, when the PoE port is connected to a PC, DVR, or other non-PoE device, the switch will automatically identify the device and will not output power to such device to ensure equipment safety.
High Compatibility for Network Cable
The Ruijie RG-ES218GCP Network Switch not only support standard cat5/5e/6 network cables, but also support power supply and data transmission via network cables of non-standard materials (such as 0.38/0.40/0.45-diameter copper-clad steel/iron), facilitating the construction and cabling.
Fast Fault Positioning
The Ruijie RG-ES218GCP Dubai support network topology display of the entire network and monitoring the network status in real time. When failure occurs for the network camera, the location and cause of failure can be displayed in a timely manner, and the notification can be sent via the mobile app.
High Surge Protection for Device Stability
The ports of the smart surveillance switches offer surge protection of up to 6KV, reducing the probability of being damaged by the surge and improving the stability of the customer’s network.
On-demand VLAN Configuration
In the network of villas/ stores/ offices, the network cameras and wireless APs may be connected to the same switch. Without network isolation, there may be problems such as camera screen lag and slow wireless speed. The smart surveillance switches provide convenient and flexible VLAN division, which can automatically divide different VLANs according to the type of equipment connected to the port, so that the surveillance network and data network do not interfere with each other, improving the stability of the entire network.
Mobile App/ Ruijie Cloud Platform Remote Management
The Ruijie RG-ES218GCP Dubai support web interface management and support mobile app and Ruijie Cloud platform remote management. Users can view the network status, modify the configuration, and troubleshoot at home. In addition, the PoE port can be restarted remotely to restart the faulty PoE camera.
Specifications
| Hardware specifications | |
| Ports | 16 10/100/1000 Base-T ports (PoE/PoE+), 2 SFP Base-X ports |
| Maximum output power per PoE port | 30W |
| Maximum PoE output power per switch | 240W |
| Switching capacity | 36Gbps |
| Packet forwarding rate | 26,784Mpps |
| Surge protection | Common mode : 4KV |
| Electrostatic discharge | Air discharge : 6KV |
| Contact discharge : 4KV | |
| Power consumption | 280W |
| Power supply | Built-in power supply |
| Dimensions (W x D x H) | 300*230*43.6mm |
| MTBF | >200K CZK |
| Operating environment | |
| Operating temperature | 0 to 40°C |
| Storage temperature | -40~70ºC |
| Operating humidity | 10% to 90% RH |
| Storage humidity | 5% to 95% RH |
| Software features | |
| MAC capacity | 8K CZK |
| Static MAC address | 16 |
| VLANs | Support 802.1Q VLAN |
| Port management |
|
| Security | Support broadcast storm suppression, port speed limit, port isolation |
| L2 features | Support port mirroring, loop protection, cable detection |
| Management | Support management and configuration through web management interface, Ruijie Cloud platform and Ruijie Cloud app |
