Description

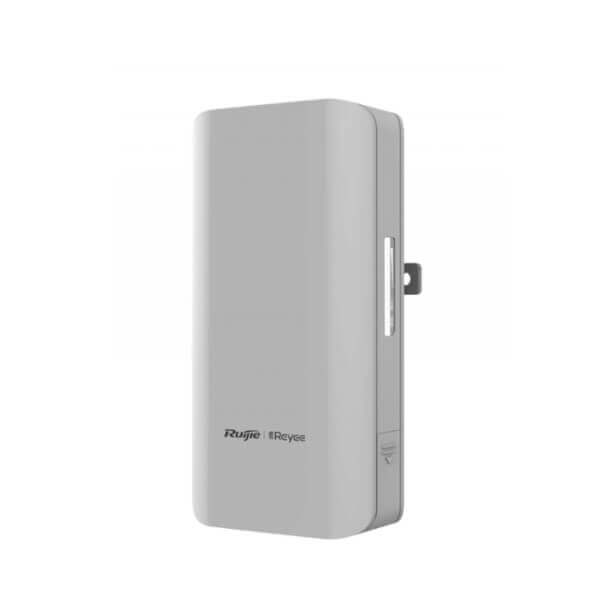

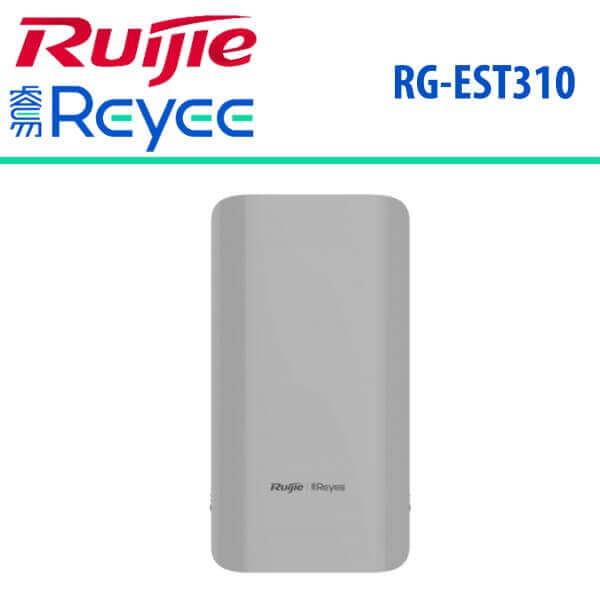

Ruijie RG-EST310 Accesspoint Dubai

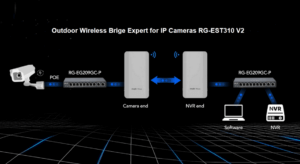

The Ruijie RG-EST310 Accesspoint Dubai is equipped with an 802.11ac wireless bridge designed for video surveillance backhaul and remote wireless transmission in diverse environments like elevators, tower cranes, factories, campuses, and construction sites. Operating at 5GHz, the RG-EST310 supports two spatial streams (2×2 MIMO technology) and delivers up to 867Mbps throughput, meeting the bandwidth requirements for various services. The RG-EST310 package includes two devices: the recorder-end and camera-end device, which are pre-paired and can be deployed without additional configurations. For video surveillance backhaul, connecting a switch or hard disk recorder to the recorder-end and a network camera to the camera-end is recommended.
What sets the Ruijie RG-EST310 Accesspoint Dubai apart is its app-based management system, enabling users to view the network topology and modify configurations, revolutionizing traditional bridge configuration methods. Maintenance is simplified; there’s no need to work at heights, significantly reducing the complexity of bridge maintenance. The device features a sleek design with four-sided curved edges, optimizing its compact size. Installation is made easy with provided straps, and the casing is designed for enhanced dustproof and waterproof performance, providing IP65 protection. Its weather-resistant materials ensure durability even in harsh conditions, including exposure to the sun, wind, acid, alkali corrosion, hot and humid weather, dry and cold weather, and rain.
Additionally, the Ruijie RG-EST310 Accesspoint Dubai comes with built-in wireless product management software, allowing users to access wireless bridge information and topology by logging into any bridge device. This ensures reliable and durable performance in various complex environments.
Features
- Auto-provisioning via self-network : RG-EG series realizes the industry-leading auto-discovery and auto-networking features for gateways, switches and wireless
- Lifetime free Ruijie Cloud managed : Remote fault alarm, one-click operation and maintenance on Ruijie Cloud App
- High Reliability : provide dustproof and waterproof IP54 protection for outdoor environments
- Zero Configuration : RG-EST310 V2 consists 2 devices paired by default and can be used without requiring any configurations
Easy Installation

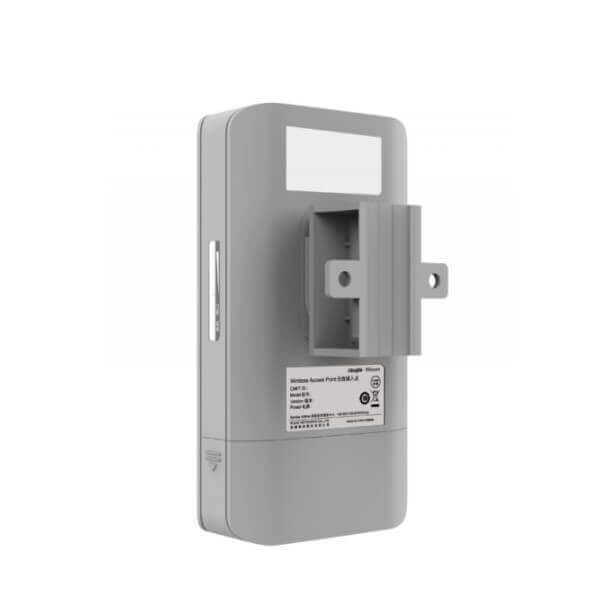

The Ruijie RG-EST310 Accesspoint Dubai is easy to install with straps provided for easy equipment installation and improve implementation efficiency.
Zero Configuration
RG-EST310 consists 2 devices, including the recorder-end and camera-end device. They are paired by default and can be used without requiring any configurations.
Convenient Maintenance
Ruijie RG-EST310 Accesspoint Dubai can automatically adjust the channels and optimize the power based on the operating environment, thereby reducing the maintenance workload caused by environmental changes. The software and hardware self-healing design can effectively prevent system hang and unexpected connection loss. RG-EST310 supports app management, which revolutionizes the conventional contact-type bridge configuration mode. Bridge maintenance no longer requires working at heights, reducing the difficulty of maintaining bridges to an unprecedented level. The device is built-in with wireless product management software WSP-EST310. Users can view all bridge information and the topology by logging in to any bridge device.
IP65 Rating
RG-EST310 can provide dustproof and waterproof IP65 protection for outdoor environments and operate in a wide temperature range from –30°C to 50°C. The high-quality weather-resistant materials enable RG-EST310 to maintain excellent structural strength without embrittlement, yellowing, or deformation for long-term outdoor operation.

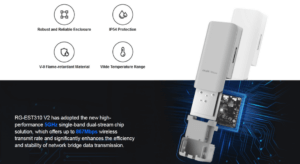

High Data Transmission Performance
The Ruijie RG-EST310 Accesspoint Dubai boasts high data transmission bandwidth, low latency, and load balancing, delivering excellent performance even when it is connected to multiple surveillance channels concurrently
Specifications
| Hardware specifications | |
| RAM / Flash | 64MB / 8MB |
| Radio | 5GHz, dual-stream single-band 2×2 |
| Operating Band | 802.11a/n/ac : 5.150～5 .350GHz, 5.470~5.725GHz , 5.725～5 .850GHz (country specific) |
| Antenna | Built-in directional antennas, 10dBi |
| Polarization | Horizontal : 60°, Vertical : 30° |
| Spatial Streams | 2 |
| Maximum Throughput | Up to 867Mbps at 5GHz |
| Max. Transmit Power | ≤400mW (26dBm) |
|
Dimensions |
147mm(D)×76mm(W)×37mm(H) (Dimensions per device) (Same size for the transmitter and receiver, H : height of the device excluding the mounting kits) |
| Weight | 0.35kg |

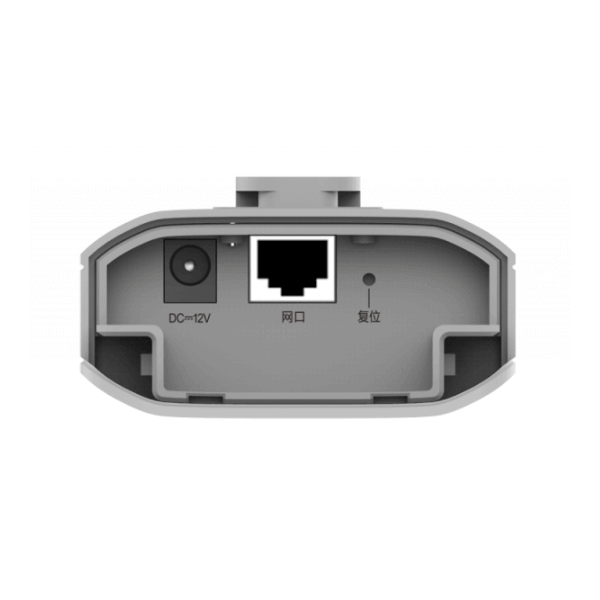

| Ports |
|
| Hardware Button | 1 reset button |
|
Status Indicators |
|
| Power Supply | Support 12VDC power supply and 24VDC non-standard PoE |
| Power Consumption | ≤7W |
|
Environment |
|
| Installation | Wall-mounted/ Pole-mounted (straps provided) |
| IP Rating | IP54 |
| Lightning Protection | 4KV |
| Radio Standard | SRRC certification |
| Software Features | |
|
Automatic Bridging |
Support
The recorder-end and camera-end are automatically paired for bridging by default |
| Device Configuration and Management | Support App/Web configuration |
| QR Code Login | Users can log in to the device configuration interface by scanning the QR code of the device using the app |
| Self-healing | Automatic restart upon equipment failure |
| Automatic Channel Adjustment | Automatically adjust the channel upon power-on |
