Ruijie RG-EW1200 Dubai

Rating

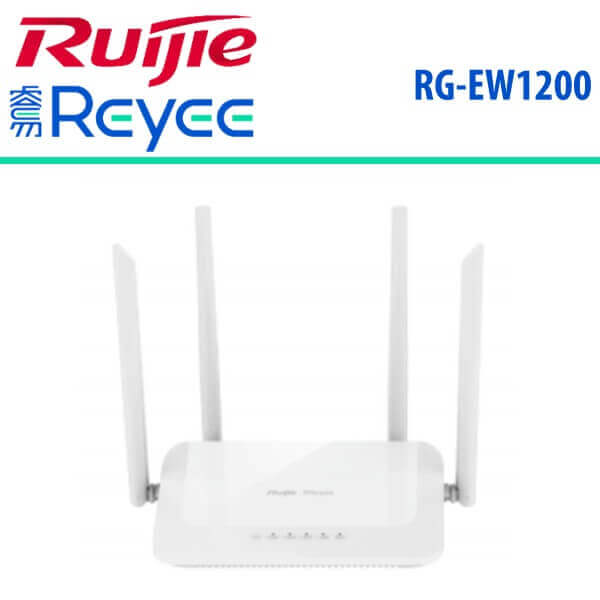

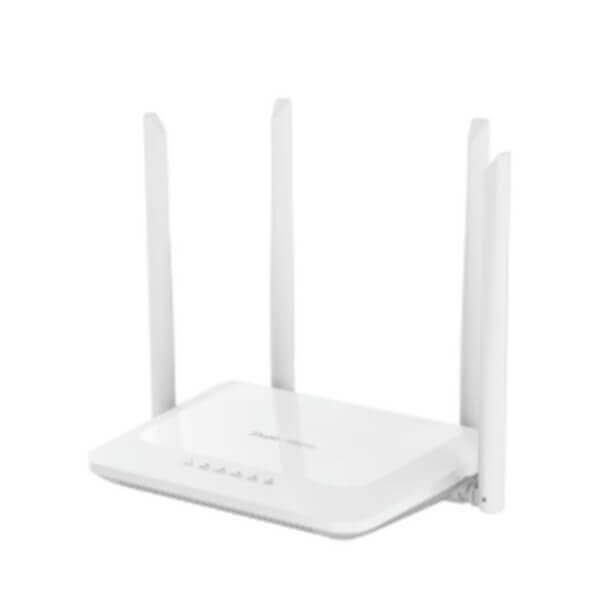

Ruijie RG-EW1200 Router Dubai

The Ruijie RG-EW1200 Router Dubai is a dual-band wireless consumer router designed specifically for apartments, self-building housing, small retail stores, and similar environments.

Description

Ruijie RG-EW1200 Wireless Router Dubai

The Ruijie RG-EW1200 Router Dubai is a dual-band wireless consumer router designed specifically for apartments, self-building housing, small retail stores, and similar environments. This device features dual-frequency access to minimize wireless interference. It utilizes Reyee Mesh Technology, eliminating configuration and installation obstacles caused by multiple networking setups and additional devices. The user-friendly app includes features like Parental Control and Game Acceleration.

The Ruijie RG-EW1200 Router Dubai provides 1 10/100Mbps WAN port and 3 10/100Mbps LAN ports, with a maximum access bandwidth of 100Mbps. It supports up to 48 clients, including 24 wireless terminals, and operates on both 2.4GHz and 5GHz bands simultaneously. The device offers a maximum wireless rate of 300Mbps at 2.4GHz, 867Mbps at 5GHz, and 1167Mbps per router. This configuration reduces wireless interference and latency, enhancing Internet access performance and user experience.

Additionally, the Ruijie RG-EW1200 Router Dubai supports network deployment with itself or RG-EW1200G PRO for unified management and configuration. The RF adjustment algorithm ensures seamless roaming between devices and fast switching between 2.4GHz and 5GHz, allowing users to move within the Wi-Fi coverage area without service interruptions. Collaborative management can be temporarily or permanently authorized to others, and fault diagnosis and maintenance can be performed through local or remote methods, including local web and Ruijie Cloud app. This setup provides worry-free maintenance and multi-end management on mobile phones and PCs from anywhere.

Features

  • 1167M Dual-Band Integration Offering Low Interference and Fast Internet Speed
  • MU-MIMO Offers Higher Transmission Efficiency
  • Professional RF Design Multiplies the Coverage Distance
  • Exclusive Reyee Mesh Technology Enables Zero-configuration Networking for Multiple Devices
  • Reyee Mesh Technology Offers Seamless Roaming without Disconnection
  • Parental Control Allow Parents to Monitor Their Child’s Internet Use
  • Temporary Authorization for Remote Management
  • Professional Heat Dissipation Design for Long-Term Stable Operation
  • Enterprise-grade product design supporting connection with enterprise-grade equipment
  • Wi-Fi Control
  • Multiple Management Methods

Specifications

Wireless specifications
  • 2.4GHz 2*2 : maximum rate 300Mbps;
  • 5GHz 2*2 : maximum rate 867Mbps
Antenna : External 4*5dBi non-removable omnidirectional antennas
Support 802.11a/b/g/n/ac/ac Wave2, MU-MIMO
Frequency band : Independent 2.4GHz and 5GHz modules, supporting dual frequency integration
Support beamforming
Wi-Fi channel :
2.4GHz Channel : 1,2,3,4,5,6,7,8,9,10,11,12,13
5GHz Channel : 36,40,44,48,52,56,60,64,149,153,157,161,165
Ports 1 10/100M WAN port(Auto MDI/MDIX)
3 10/100M LAN ports(Auto MDI/MDIX)
1 system LED indicator, 3 network port LED indicators, 1 Wi-Fi indicator
1 device pairing/factory reset button
1 power input interface
Physical specifications Dimensions :182x121x32mm (W×D×H, excluding antennas)
Weight :0.4kg(entire equipment including packaging)
Power supply Power specification : DC12V 0.6A
Maximum power : <7W
Certification CCC,SRRC
Operating environment Operating temperature : -10-45℃
Storage temperature : -40-70℃
Operating humidity : 5%-95%RH (non-condensing)
Storage humidity : 5%-95%RH (non-condensing)
Main features Routing mode : PPPoE / DHCP / static IP; relay mode: wired relay / wireless relay
Obtain PPPoE account from the old router
Wi-Fi dual-band separation/ integration
Guest Wi-Fi; smart home Wi-Fi; wireless network isolation
Static DHCP address
Virtual server : port mapping, DMZ, etc.
DDNS : Oray
UPnP
Network security Wireless security : WPA-PSK/WPA2-PSK encryption
ARP protection : IP/MAC binding
SSID hiding
Preventing rogue devices (Blacklist/whitelist)
Internet access control
Advanced features Reyee Mesh : Supports zero-configuration networking of multiple devices, and supports automatic switching between wired and wireless networking for multiple devices
Wi-Fi optimization : Wi-Fi roaming, 5G priority, acceleration mode, channel adjustment, power adjustment, roaming sensitivity adjustment
Bandwidth management : hardware NAT, intelligent bandwidth allocation
Auto network inspection, fault diagnosis
Software upgrade : Automatic & manual cloud software upgrade
Management mode Local web page
Ruijie Cloud app : iOS version, Android version
