Description

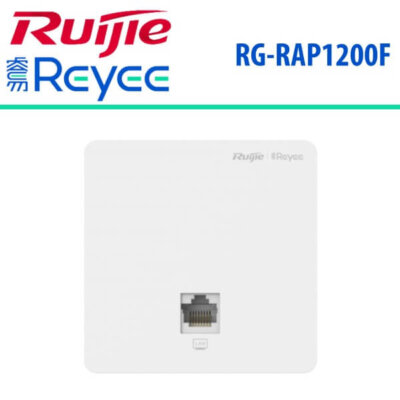

Ruijie Reyee RG-RAP1200F Access Point Dubai
The Ruijie RG-RAP1200F Accesspoint Dubai is a high-performance dual-band wall-mounted access point. It supports Power over Ethernet (PoE) and has a LAN port for connecting devices such as IPTV and IP phones. The AP is compatible with the 802.11a/b/g/n/ac Wave1/Wave2 Wi-Fi protocol and supports MU-MIMO dual-stream technology. It can operate simultaneously on the 2.4GHz and 5GHz bands, providing wireless speeds of up to 400Mbps at 2.4GHz, 867Mbps at 5GHz, and a total of 1267Mbps per AP.
The compact 86mm wall plate design makes it easy to install the AP directly into a standard 86mm wall junction box. This makes it ideal for deployment in offices, commercial buildings, hotels, and other service scenarios.
The AP supports Ruijie’s self-organizing network feature, which allows it to automatically discover, connect to, and configure other Ruijie routers, switches, and wireless APs without the need for a controller or Internet access. This makes it easy to set up and manage a wireless network, even for users with limited experience.
Additionally, the Ruijie Cloud app allows users to quickly deploy and configure the AP, remotely manage the network, and perform operations and maintenance tasks. This can help to reduce the cost and time required to build and maintain a wireless network.
In summary, the Ruijie RG-RAP1200F Accesspoint Dubai is a high-performance, easy-to-use dual-band wall-mounted access point that is ideal for deployment in a variety of indoor environments.
ruijie rg-rap1200f accesspoint dubai
Features
- 11ac Wave2 technology
- Auto-provisioning via Self-Organizing Network : Supports Ruijie’s self-developed smart networking feature, which breaks through the product limitations and realizes auto-discovery, auto-networking and auto-configuration between gateways, switches, and wireless APs without the need for controllers or Internet access;

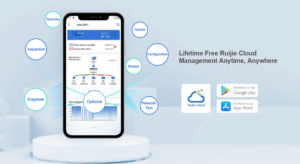

- Lifetime free Ruijie Cloud management : Remote fault alarm, one-click optimizing and maintenance on Ruijie Cloud App;
- Seamless layer 3 roaming
- Industrial Design : Robust casing, Provide better strength and safety for products;
High-speed dual-band Wi-Fi
The Ruijie RG-RAP1200F Accesspoint Dubai supports 2.4GHz and 5GHz dual-band communication, providing access rate of 400Mbps at 2.4GHz, 867Mbps at 5GHz and up to 1267Mbps per AP. It can provide 5GHz frequency band with less interference, wider channel, and faster speed for the terminals, allowing the users to enjoy excellent wireless experience.
Support routing and AP mode
The device supports both AP and routing mode. A wireless network can be formed with multiple APs, or it can be used as a wireless router when deployed independently. The device offers more flexible configurations, more abundant application features, and more extensive applicable scenarios.
Support Layer 3 networking
The Ruijie Reyee RG-RAP1200F device supports Layer 3 roaming for Layer 3 network. When users move across the Layer 3 networks, seamless roaming can be achieved without service interruption.
Stronger and more stable signals
An aluminum alloy antenna reflector is added to reflect interference signals and focus effective signals so as to provide stronger signal transmission and better receiving sensitivity. The device uses FBAR to filter out all kinds of interferences caused by the operator’s base stations, microwave ovens, Bluetooth devices, etc., so as to provide cleaner wireless signals, higher transmission rate and more stable transmission quality.
Robust casing
With the robust and flame-retardant material of the AP casing, the impact resistance is 5 times higher than that of common ABS plastic materials. The tensile and flexural strengths are increased by 30%, which is not easy to damage. Users can rest assured during usage and maintenance.
Simple installation
The 86mm wall plate installation design facilitates quick installation directly into a standard 86mm wall junction box, without requiring any additional mounting bracket.
Specifications
| Hardware specifications | |
| Radio | Dual-stream dual-band |
| Protocol | Concurrent 802.11b/g/n/ac |
| Operating Bands |
(Note : The operating bands vary according to different countries) |
| Antenna | PCB antenna |
| Spatial Streams |
|
| Max Throughput |
|
| Modulation |
|
| Receive Sensitivity |
|
| Maximum Transmit Power | 20dBm (adjustable) |
| Adjustable Power | 1dBm |
| Dimensions | 86*86*29.3 |
| Weight | <0.25kg |
| Service Ports | Front：1 10/100Mbps Ethernet port |
