Ruijie RG-RAP2200F Dubai

Rating

Ruijie RG-RAP2200F Accesspoint Dubai

The Ruijie RG-RAP2200F Accesspoint Dubai is a high-performance ceiling-mount Wi-Fi access point (AP) for large indoor areas. It supports 802.11a/b/g/n/ac Wave1/Wave2 Wi-Fi and MU-MIMO dual-stream technology, and offers built-in omnidirectional antennas.

Description

Ruijie Reyee RG-RAP2200F Access Point Dubai

The Ruijie RG-RAP2200F Accesspoint Dubai is a high-performance ceiling-mount Wi-Fi access point (AP) for large indoor areas. It supports 802.11a/b/g/n/ac Wave1/Wave2 Wi-Fi and MU-MIMO dual-stream technology, and offers built-in omnidirectional antennas. It can operate concurrently at 2.4GHz and 5GHz, providing high-speed wireless access of up to 1267Mbps per AP.

The Ruijie RG-RAP2200F Accesspoint Dubai also supports a number of other advanced features, including :

  • Smart networking :  This feature allows users to quickly and easily deploy, manage, and troubleshoot their network using the Ruijie Cloud app. This can save a significant amount of time and money, especially for businesses with large or complex networks.
  • Self-organizing network :  This feature allows the RG-RAP2200F to automatically configure itself and other APs on the network to ensure optimal performance and coverage. This is ideal for businesses that need to deploy a wireless network quickly and easily, or that need to make changes to their network frequently.
  • Security :  The RG-RAP2200F supports a number of advanced security features, including WPA2-Enterprise and 802.1x authentication, as well as wireless intrusion prevention, rogue access point detection, and more. This helps to protect the network from unauthorized access and malicious attacks.
  • Scalability :  The RG-RAP2200F is scalable to support networks of all sizes, from small businesses to large enterprises. This makes it a versatile solution for businesses of all types.

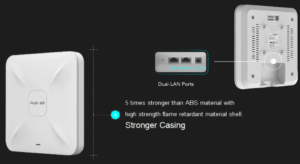

ruijie rg rap2200f accesspoint dubai 300x164 - Ruijie RG-RAP2200F Dubai

ruijie rg-rap2200f accesspoint dubai

The Ruijie RG-RAP2200F Accesspoint Dubai is an ideal solution for businesses that need a high-performance, reliable, and secure wireless network. It is easy to set up and manage, and it offers a wide range of features to meet the needs of even the most demanding businesses.

Here are some specific examples of how the Ruijie RG-RAP2200F Accesspoint Dubai can be used in different business environments :

  • Schools :  The RG-RAP2200F can be used to provide high-speed wireless access to students and staff in schools of all sizes. Its smart networking features make it easy for IT administrators to deploy and manage the network, and its security features help to protect the network from unauthorized access and malicious attacks.
  • Offices :  The RG-RAP2200F can be used to provide high-speed wireless access to employees in offices of all sizes. Its scalability makes it ideal for businesses of all types, from small startups to large enterprises.
  • Hotels :  The RG-RAP2200F can be used to provide high-speed wireless access to guests in hotels of all sizes. Its ease of use and scalability make it ideal for businesses that need to deploy a wireless network quickly and easily, and that need to make changes to their network frequently.

Overall, the Ruijie RG-RAP2200F Accesspoint Dubai is a powerful and versatile Wi-Fi AP that is ideal for a wide range of business environments.

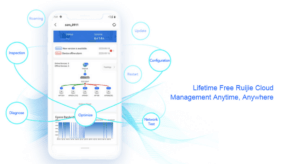

ruijie rg rap2200f accesspoint sharjah 300x164 - Ruijie RG-RAP2200F Dubai

ruijie rg-rap2200f accesspoint sharjah

Features

High-speed dual-band Wi-Fi

Ruijie RG-RAP2200F Accesspoint Dubai supports 2.4GHz and 5GHz dual-band communication, providing access rate of 400Mbps at 2.4GHz, 867Mbps at 5GHz and up to 1267Mbps per AP. It can provide 5GHz frequency band with less interference, wider channel, and faster speed for the terminals, allowing the users to enjoy excellent wireless experience.

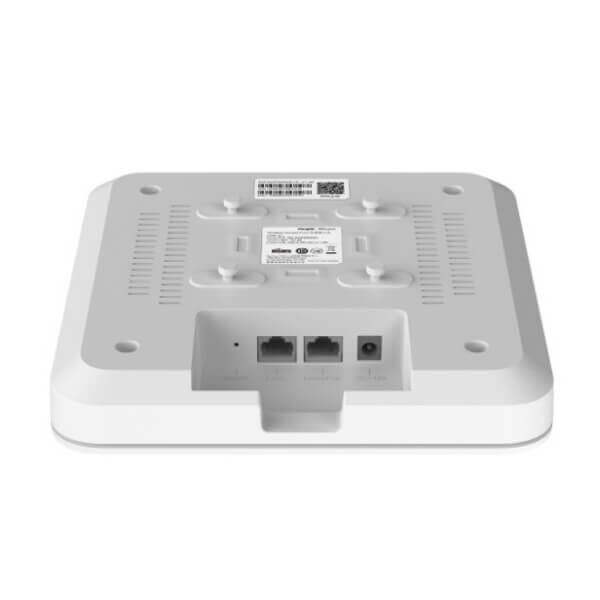

Dual LAN ports design

The device adopts the dual LAN ports design. Even for complex networking requirements, it can easily and quickly support the expansion of third-party devices, such as cameras, time and attendance devices

Support routing and AP mode

The device supports both AP and routing mode. A wireless network can be formed with multiple APs, or it can be used as a wireless router when deployed independently. The device offers more flexible configurations, more abundant application features, and more extensive applicable scenarios.

Support Layer 3 networking

The device supports Layer 3 roaming for the complex Layer 3 network. When users move across the Layer 3 networks, seamless roaming can be achieved without service interruption.

Stronger and more stable signals

An aluminum alloy antenna reflector is added to reflect interference signals and focus effective signals so as to provide stronger signal transmission and better receiving sensitivity. The device uses FBAR to filter out all kinds of interferences caused by the operator’s base stations, microwave ovens, Bluetooth devices, etc., so as to provide cleaner wireless signals, higher transmission rate and more stable transmission quality.

Robust casing

With the robust and flame-retardant material of the AP casing, the impact resistance is 5 times higher than that of common ABS plastic materials. The tensile and flexural strengths are increased by 30%, which is not easy to damage. Users can rest assured during usage and maintenance.

Simple installation

It supports various installation methods including on desktop, ceiling, wall, and pole. Adopting the non-directional installation design, the equipment can be installed in one go efficiently.

Fast and smart configuration

In large-scale complex networks, the configuration of the entire network can be completed by connecting to a single gateway device. There is no need to configure the devices separately, which can greatly reduce the device configuration time.

Industrial design

The industrial product design, iconic edges and breathing light makes the product more recognizable

Visualized operation and maintenance

The cloud computing network topology can comprehensively present the equipment operating status of the entire network. Through the rich information in the topology, you can quickly get the full picture of the network (network egress status, link status, device status), and quantify the user experience and network quality, so that users can master the information of the entire network.

Remote collaborative management

Users can perform comprehensive remote operation, management, and maintenance of the equipment in the entire network via the Ruijie Cloud app, Ruijie Cloud platform, etc. They can also share the network to third party for network hosting and collaborative management to operate and maintain the enterprise network more efficiently.

Specifications

Hardware specifications
Radio Dual-stream dual-band
Protocol Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n
Operating Bands
  • 802.11b/g/n :2.4G ~ 2.4835GHz
  • 802.11a/n/ac : 5G:5.150~5.250GHz,5.725~5.850GHz (country specific)
Antenna Internal antennas(2.4G : 2dBi,5G : 2dBi)
Spatial Streams 2.4G 2x2MIMO  5G 2x2MIMO
Max Throughput
  • Up to 400Mbps at 2.4G
  • Up to 867Mbps at 5G
  • 1.267Gbp per AP
Modulation
  • OFDM : BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
  • DSSS : DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps
  • MIMO-OFDM : BPSK, QPSK, 16QAM, 64QAM and 256QAM
Receive Sensitivity
  • 11b : -91dBm (1Mbps), -88dBm (5Mbps), -85dBm (11Mbps)
  • 11a/g : -89dBm (6Mbps), -80dBm (24Mbps), -76dBm (36Mbps), -71dBm (54Mbps)
  • 11n : -83dBm@MCS0, -65dBm@MCS7, -83dBm@MCS8, -65dBm@MCS15
  • 11ac HT20 : -83dBm (MCS0), -57dBm (MCS9)
  • 11ac HT40 : -79dBm (MCS0), -57dBm (MCS9)
  • 11ac HT80 : -76dBm (MCS0), -51dBm (MCS9)
Maximum Transmit Power
  • 5.725~5.850GHz :≤20dBm (EIRP)
  • 5.150~5.250GHz :≤20dBm (EIRP)
  • 2.4~2.4835GHz :≤20dBm (EIRP)
Adjustable Power 1dBm
Dimensions 194mm×194mm×35mm (excluding mounting kits)
Weight 0.45kg (excluding mounting kits)
Service Ports
  • 2 10/100Base-T Ethernet ports,
  • PoE/LAN1 port supports PoE
Management Port NA
LED Indicator NA
Power Supply Single indicator (green light)
Power Consumption
  • Local power supply, DC 12V/1.5A (Note : The power adapter is sold as an optional accessory)
  • 802.3af/802.3at PoE
Environment ≤ 12.95W
Operating temperature : 0°C~40°C
Storage temperature : -40°C~70°C
Operating humidity : 5%~95%(non-condensing)
Installation Storage humidity : 5%~95%(non-condensing)
Safety Standard GB4943, IEC 62368-1
EMC Standard GB9254,EN301 489,EN50155,EN50121,EN55032,EN61000,EN55035
Vibration Standard IEC61373
Radio Standard EN300 328, EN301 893
MTBF >250000H
Software Features
Operating Mode AP mode and routing mode
WLAN
  • Maximum number of clients : 110
  • Recommended number of clients : 48 (16 at 2.4GHz, 32 at 5GHz)
  • Up to 8 SSIDs
