Description

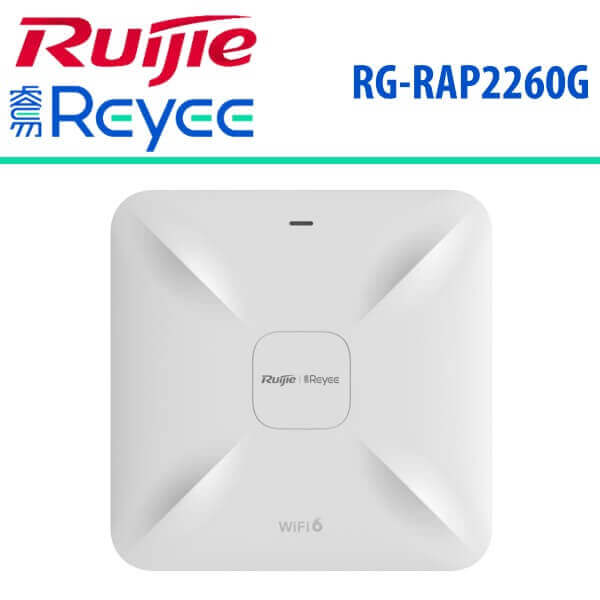

Ruijie Reyee RG-RAP2260G Access Point Dubai
The Ruijie RG-RAP2260G Accesspoint Dubai is designed as a high-performance entry Wi-Fi 6 Access Point, perfect for large indoor Wi-Fi coverage needs. It supports a variety of installation methods, including desktop, ceiling, wall, and pole, thanks to its non-directional installation design, making efficient installation possible in a single step. The device is compatible with both 802.3af/at PoE and 12V DC local power supply. With its dual LAN ports, Ruijie RG-RAP2260G Accesspoint Dubai allows the integration of third-party devices to cater to diverse networking requirements.
Compliant with 802.11a/b/g/n/ac/ax Wi-Fi protocols, the Ruijie RG-RAP2260G Accesspoint Dubai supports MU-MIMO dual-stream technology and comes with built-in omnidirectional antennas. Operating simultaneously at 2.4GHz and 5GHz, it delivers high-speed wireless access, reaching 574Mbps at 2.4GHz, 1201Mbps at 5GHz, and up to 1775Mbps per Access Point. Ruijie RG-RAP2260G Accesspoint Dubai’s impressive coverage of over 20 meters makes it an ideal choice for various wireless scenarios, particularly in offices, commercial industries, hotels, and service environments.
Features
Powerful Dual-band Wi-Fi
The Ruijie RG-RAP2260G Accesspoint Dubai supports 2.4GHz and 5GHz dual-band communication, they can provide 5GHz frequency band with less interference, wider channel, and faster speed for the terminals, allowing the users to enjoy excellent wireless experience. Ruijie Reyee RG-RAP2260G Dubai provide access rate of 800Mbps at 2.4GHz, 2402Mbps at 5GHz, in total 3202Mbps per Access Point.

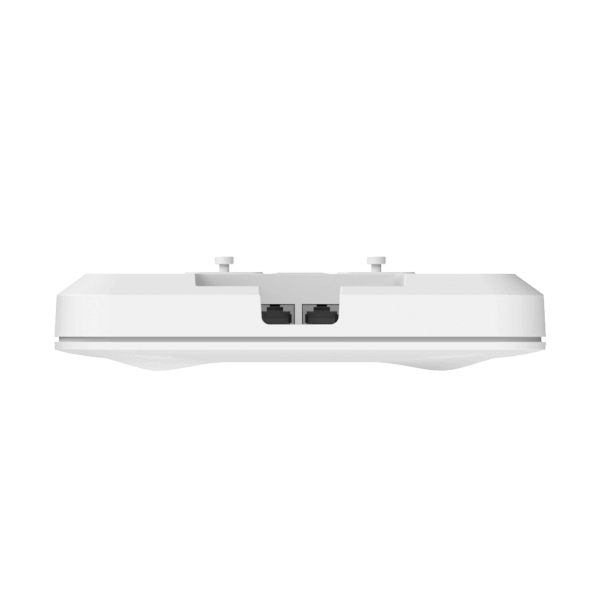

Dual LAN Ports Design
Ruijie RG-RAP2260G Accesspoint Dubai adopts the dual LAN ports design. Even for complex networking requirements, it can easily and quickly support the expansion of third-party devices, such as cameras, time and attendance devices, etc.
Support Routing and AP Mode
The RG-RAP2260G Accesspoint Dubai supports both AP and routing mode. A wireless network can be formed with multiple Access Points, or it can be used as a wireless router when deployed independently. The device offers more flexible configurations, more abundant application features, and more extensive applicable scenarios.
Support Layer 3 roaming
The device supports Layer 3 roaming for the complex Layer 3 network. When users move across the Layer 3 networks, seamless roaming can be achieved without service interruption.
Higher Stable Transmission Rates
An aluminum alloy antenna reflector is added to reflect interference signals and focus effective signals so as to provide stronger signal transmission and better receiving sensitivity. The device uses FBAR to filter out most of interferences caused by the operator’s base stations, microwave ovens, Bluetooth devices, etc., so as to provide cleaner wireless signals, higher transmission rate and more stable transmission quality.
Robust Casing
With the robust and flame-retardant material of the Access Point casing, the impact resistance is 5 times higher than that of common ABS plastic materials. The tensile and flexural strengths are increased by 30%, which is not easy to damage. Users can rest assured during usage and maintenance.
Simple Installation
Ruijie Reyee RG-RAP2260G Dubai supports various installation methods including on desktop, ceiling, wall, and pole. Adopting the non-directional installation design, the equipment can be installed in one go efficiently.
Industrial Design
The Ruijie RG-RAP2260G Accesspoint Dubai features industrial product design, iconic edges and breathing light makes the product more recognizable.
Specifications
| Model | RG-RAP2260(G) |
| Radio | Dual-stream dual-band |
| Protocol | Concurrent 802.11ax, 802.11ac wave2/wave1, 802.11a/b/g/n |
| Operating Bands |
|
| Antenna | Internal antennas(2.4G : 3dBi，5G : 3dBi) |
| Spatial Streams | 2.4G 2x2MIMO 5G 2x2MIMO |
| Max Throughput |
|
| Modulation | OFDM :
DSSS :
MIMO-OFDM :
|
| Receive Sensitivity | 11b :
11a/g :
11n :
11ac :
Wi-Fi 6 :
|
| Maximum output power of the transmitter (single stream) |
|
| Adjustable Power | 1dBm |
| Dimensions | 194mm×194mm×35mm (excluding mounting kits) |
| Weight | 0.56kg (excluding mounting kits) |

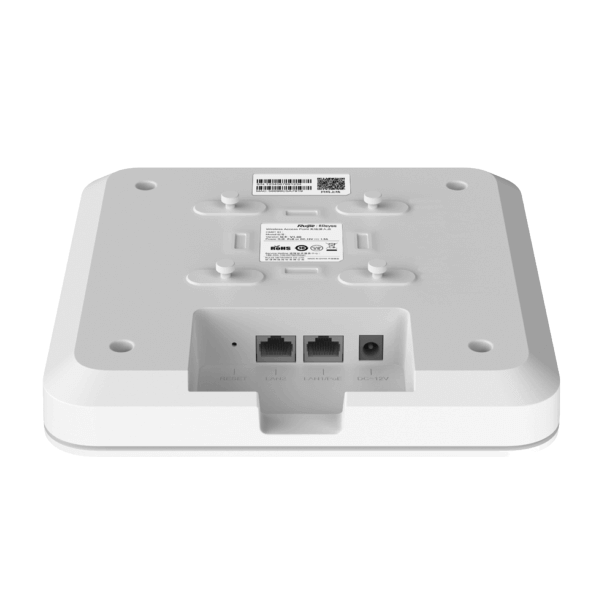

| Service Ports | 2 10/100/1000M Base-T Ethernet ports, PoE/LAN1 port supports PoE |
| Management Port | NA |
| LED Indicator | Single indicator (green light) |
| Power Supply | |
| Power Consumption | ≤ 15.3W |
| Environment |
|
| Vibration Standard | IEC61373 |
| Radio Standard | EN300 328, EN301 893 |
| MTBF | >400000H |
| Operating Mode | AP mode and routing mode |
| WLAN |
|
