Description

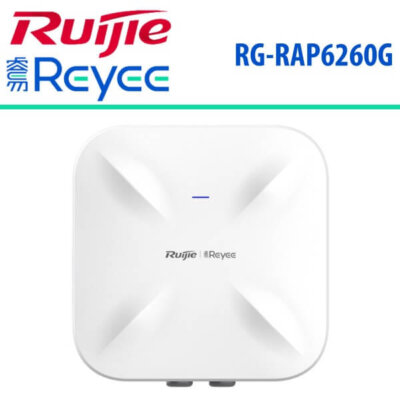

Ruijie Reyee RG-RAP6260G Access Point Dubai

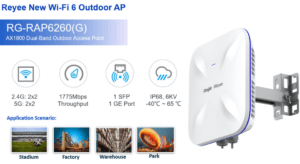

The Ruijie RG-RAP6260G Accesspoint Dubai is a high performance outdoor WiFi access point, suitable for the commercial environments. As an 802.11ax WiFi-6 access point, multiple RAP6260G units can be used to cover large outdoor spaces, such as connectivity around buildings, carparks, schools, or for public WiFi. The supplied bracket supports wall, horizontal, and vertical installations. Managed by the Ruijie Cloud Platform, the Ruijie RG-RAP6260G Accesspoint Dubai features auto discovery and provisioning, self-organization, and self-configuration. The unit should be connected to the network by wired backhaul (via SFP or Gigabit Ethernet RJ45).
Ruijie RG-RAP6260G Accesspoint Dubai applies for IP68 protection on the outer shell design, which is suitable in the outdoor environment and voids the influence from the extreme condition. The device meets the demanding requirements, such as able to perform under ultra-cold and humid weather. This reduces the difficulty of installation and maintenance. RG-RAP6260G supports Power over Ethernet remote mode, which is highly suitable for many scenarios such as education, government, medical, finance, business. Offering 574 Mb/s over 2.4 GHz and 1201 Mb/s over 5 GHz, the Ruijie RG-RAP6260G provides up to 1.8 Gbps of WiFi throughput.

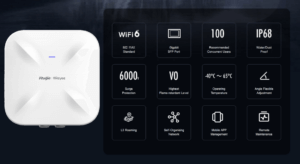

Features
- 11ax WiFi-6 supporting speeds up to 1775 Mbps
- Dual band dual stream (2×2:2)
- Managed with Ruijie Cloud Controller for seamless onboarding and roaming between APs
- Up to 512 simultaneous users per access point (100 recommended)
- 3af/at PoE or 12 Vdc power supply
- 1x gigabit ethernet port, 1x gigabit SFP Port
Speedy Dual Band Access Point
With concurrent 2.4GHz and 5GHz, the Ruijie RG-RAP6260G Accesspoint supports dual-band dual-stream MIMO technology, providing 574Mbps at 2.4GHz, 1201Mbps at 5GHz and up to 1775Mbps per AP. In addition, it offers a comfortable experience for low interference, wide band width and high-speed 5Ghz frequency band.
Flexible Gigabit Uplink Options
The Ruijie RG-RAP6260G Accesspoint outdoor access point offers one 10/100/1000Base-T Ethernet uplink port that rids the LAN port of the wireless access bottleneck and one 1000M SFP port that adapts to wired networking structure under different user scenarios. In addition, the SFP Base-X port takes up the data transmission workload for optimal network deployment.
Support Both Router and AP Mode
The Ruijie RG-RAP6260G Accesspoint supports both router and AP mode. It can set up Wi-Fi with multiple AP devices. At the same time, it can be a router when uses individually. The device has a flexible setting, various functions and can be applied in many scenarios.

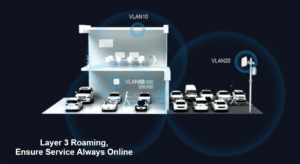

Support Layer 3
Even in the complex layer three networks, the device supports layer 3 roaming, which can provide the best experience even when the client is across the layer 3 network.
Stronger and More Stable Signal
With high-quality antennas, the transmitted signal is stronger and receiving sensitivity is better. In addition, the equipment uses FBAR filters which can effectively filter out various interferences, including operator’s cell sites, microwave ovens, Bluetooth devices, etc. Therefore, the wireless signal is cleaner, the transmission rate is higher, and the transmission quality is more stable.
Outstanding Environment Suitability
The outer shell of the product applies a completely sealed waterproof, dust-proof, moisture-proof and flame-retardant design. It meets the requirements of the IP68 protection level. It can be placed outdoors for a long time and still perform under harsh environments such as windy, rainy, and humid weather. As a result, the life cycle of the equipment is greatly improved, and at the same time and the user’s subsequent maintenance costs can be effectively reduced.

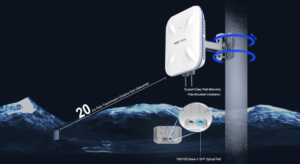

Easy-to-Use Installation

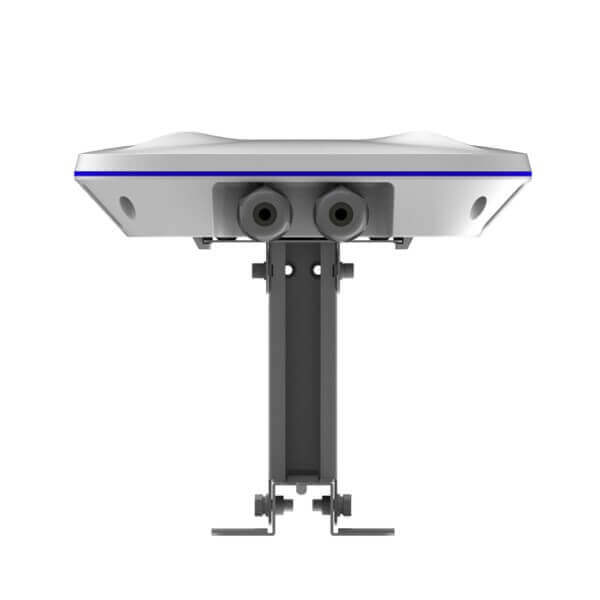

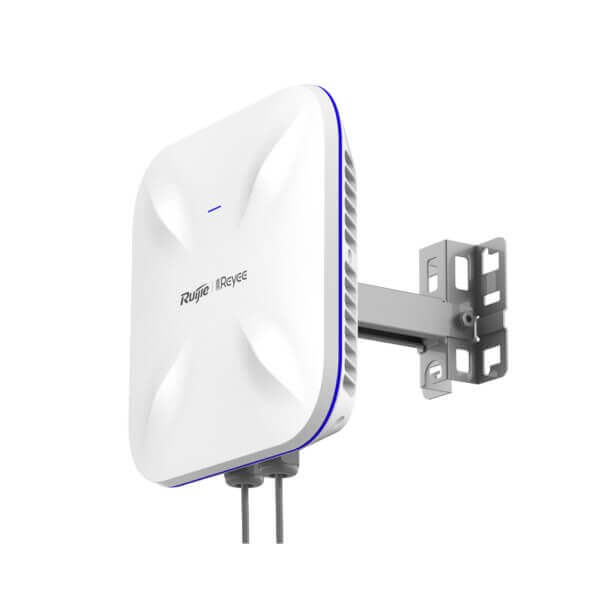

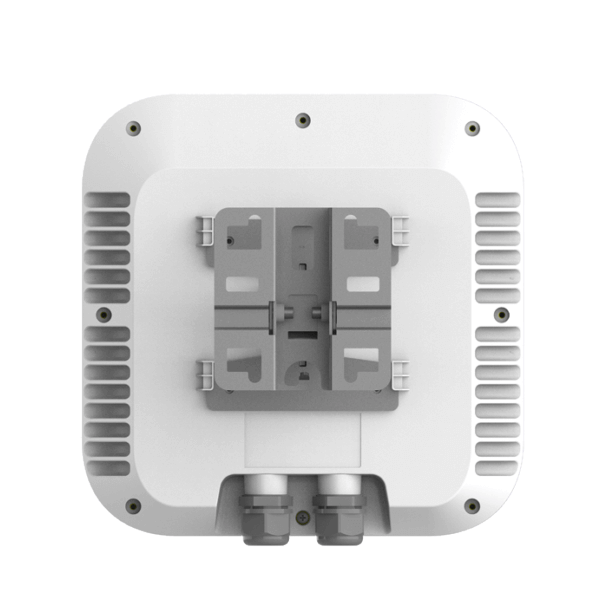

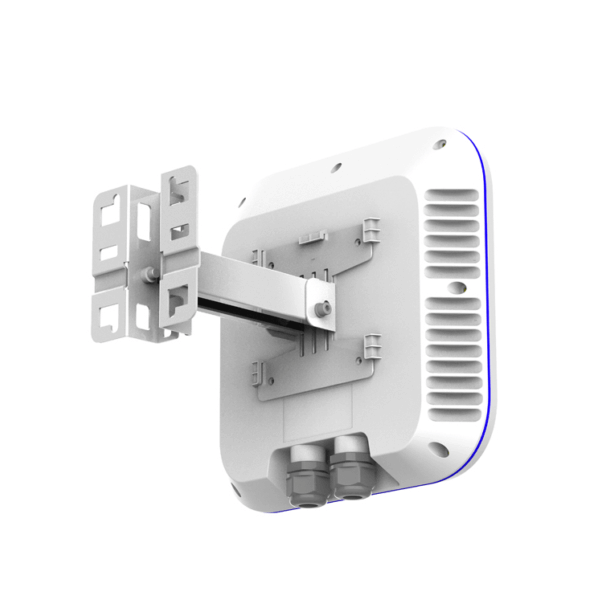

Ruijie RG-RAP6260G Accesspoint Dubai has three types of installation, wall mount, horizontal and vertical installation. It is more efficient by using the one-step installation.
Industrial Design
The RG-RAP6260G applies industrial outer shell design, which has the typical angular design. With breathing lights, it has high recognizability.
Multi-End Management
The AP supports management via Ruijie Cloud APP, Ruijie Cloud platform, EWeb management to achieve multi-end local and remote management on PC, Ruijie Cloud APP.
Fast and Smart Configuration
In large-scale complex networks, the entire network configuration can be completed by connecting to a single gateway device. As a result, there is no need to configure the devices separately, which can significantly reduce the configuration time of the device.
Scenario-Based Configuration
Scenario-based configurations can be performed via the EWeb and Ruijie Cloud APP, which can significantly reduce the configuration threshold of complex functions, such as visitor isolation solution, flow control solution, etc. Therefore, even novices can easily fulfil the diverse and complex requirements of the customers.
Visualized Operation and Maintenance
The cloud computing network topology can comprehensively present the equipment operating status of the entire network. Through the rich information in the topology, you can quickly get the complete picture of the network (network egress status, link status, device status) and quantify the user experience and network quality to master the information of the entire network.
Remote Assistance Management
The client can manage all devices via Ruijie Cloud APP, Ruijie Cloud platform to perform the remote assistance management. To achieve high effective management on the corporate internet, it can also share and give others access to perform remote assistance management.
Network Optimization with Big Data AI
Through artificial intelligence combined with cloud big data, comprehensive network intelligent operation and maintenance and optimization can be carried out. Including but not limited to: Possess automatic system repair capabilities such as automatic identification and merging of new equipment, WAN port IP address conflict avoidance, etc. Provide system intelligent optimization capabilities such as business-based network policy configuration, radio frequency channel and roaming characteristics adjustment. Provides diagnosis and repair suggestions for more than 30 common network anomalies, including DHCP conflicts, abnormal negotiation rates, traffic overruns, AP offline, device interference, etc.
Specifications
| Technical Specification | Specification Description |
| Model | RG-RAP6260(G) |
| Radio | Dual-stream dual-band |
| Protocol | Concurrent 802.11a/b/g/n/ac/ax |
| Operating Bands | 802.11b/g/n/ac/ax ：2.4G ~ 2.4835GHz
802.11a/n/ac/ax： 5G：5.150～5.350GHz，5.725～5. (country specific) |
| Antenna | Internal antennas (2.4G: 4dBi，5G: 6dBi) |
| Spatial Streams | 2.4G 2x2MIMO 5G 2x2MIMO |
| Max Throughput |
|
| Modulation | DBPSK/DQPSK/CCK(DSSS)/BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM |
| Receive Sensitivity |
|
| Maximum Output Power of the Transmitter
(Single Stream) |
(country-specific，comply with local laws） |
| Adjustable Power | 1dBm |
| Dimensions | 298mm×298mm×65mm (excluding mounting kits) |
| Weight | ≤1.35kg (excluding mounting kits) |
| Service Ports |
|
| Management Port | N/A |
| LED Indicator | Single indicator (Blue light) |
| Power Supply | 802.3af/802.3 at PoE |
| Power Consumption | ≤17W |
| Bluetooth | Support |
| Environment | Operating Temperature ：-40°C～65°C |
| Storage Temperature ：-40°C～85°C | |
| Operating humidity ：0%～100%, non-condensing | |
| Storage humidity ：0%～100%，condensing/non-condensing | |
| Installation | Ceiling/Wall-Mountable |
| Safety Standard | GB4943、IEC 60950-1 |
| EMC Standard | GB9254、EN301 489，EN50155：EN50121 |
| Vibration Standard | IEC61373 |
| Radio Standard | EN300 328，EN301 893 |
| MTBF | >400000H |
| WLAN | Maximum number of clients : 512 |
| Recommended number of clients : 100 | |
| Up to 8 SSID | |
|
|
| SSID-based and radio-based STA limit | |
| Support Layer 2 user isolation | |
| Roaming | Support layer 2 and layer 3 roaming |
| Security | Support PSK authentication |
| Support static blacklist and whitelist | |
| Support WPA（TKIP）,WPA2（AES）,WPA-PSK data encryption | |
| Routing | Support static IP address, DHCP, PPPoE Dial |
| Management and Maintenance |
|
| Platform Management Features | Automatic RF adjustment via the platform |
| Unified configuration via the platform | |
| Unified monitoring via the platform |
