Description

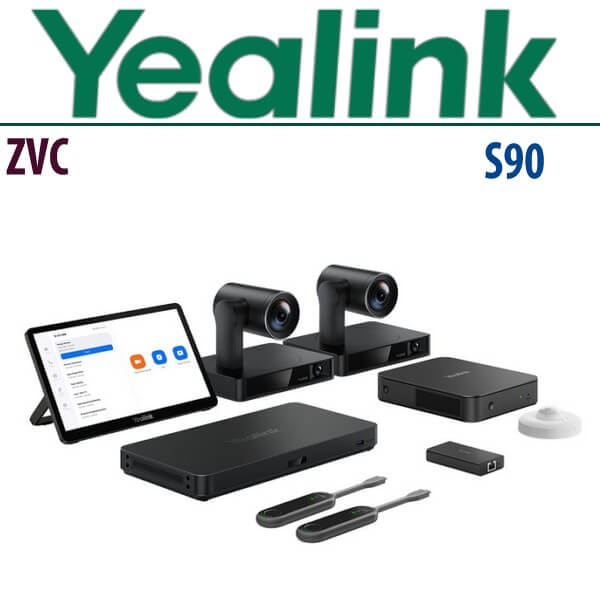

Yealink ZVC S90 Dubai

The Yealink ZVC S90 Dubai is tailored for expansive conference spaces, featuring the MINI-PC M Core Pro, touch panel M Touch Plus, 4K PTZ camera UVC86, and AVHub for audio-video processing. With the AV Hub, users can adjust screen layouts and utilize Yealink’s multi camera solution, supporting connection of up to 9 cameras concurrently for multi-speaker tracking. Yealink ZVC S90 Dubai comes with two UVC86 cameras boasting 12x optical zoom and intelligent follow-up shooting capabilities. Utilizing Yealink Room Connect on the MTouch Plus panel, users can independently control cameras, switch layouts, and integrate with the ZVC-BYOD-Extender for seamless audio-video equipment integration. Networking multiple ZVC S90 sets allows for the creation of a versatile conference room system.



Yealink ZVC S90 Features

Multi-cam solution, Flexible layout: By utilizing the AVHub audio and video processor, Yealink implements a multi-camera solution that accommodates up to 9 Yealink cameras. Multiple ZVC S90 series sets can be connected via network cables to create a conference room system that offers flexible merging and dividing capabilities.

Big and flexible conference control experience: The Yealink MTouch Plus, a key product in the third generation of Yealink devices, features an 11.6-inch narrow-frame touch surface. Its flexible deployment options allow us to position each panel according to the requirements of the conference room and effectively manage the conference proceedings.

Intelligent tracking, Free your hands: The Yealink UVC86 intelligent PTZ camera offers various tracking functions such as Auto-framing, Speaker Tracking, and Presenter Tracking. The Speaker Tracking feature of the UVC86 allows for region trigger support without the need for manual operation, enabling automatic framing of the speaker. Additionally, it supports gesture control for convenient ON/OFF toggling suitable for any scenario. With the Yealink camera plug-in controller, users can easily switch between up to 9 preset positions and quickly switch preset tracking modes with just a single adjustment. The UVC86 camera delivers 4K video output, coupled with a 12x optical zoom lens to ensure sharp and high-quality images. This camera provides a seamless face-to-face experience.

Flexible audio, Flexible connectivity: Users have the option to utilize either wired (VCM35, VCM38 Ceiling microphone) or wireless (VCM36-W, CPW65) microphones for audio capture. They can adjust to different conference room setups, including desktop or ceiling placement. Yealink’s special sound processing algorithm can actively reduce reverberation and background noise based on the surrounding sound, effectively eliminating unwanted disruptions and enabling clear voice quality consistently. Through partnerships with third-party brands like Biamp, Nureva, Shure, and YAMAHA, S90 is compatible with their devices for seamless integration into the conference system.

Simple to deploy, Easy to use: Yealink ZVC S90 Dubai audio and video systems are tailored for video meeting rooms, boasting the VCH port and USB port for easy expansion. The Yealink MCore Pro offers cable management to ensure stable wire connections, allowing for optimal deployment based on the meeting room layout. With just one CAT5e cable, the TV area can be linked to the conference table area for seamless data transmission and power supply, eliminating the need for extra cables or power sources. This streamlined approach simplifies deployment and significantly cuts costs.

Manage your devices remotely: This solution enables seamless management, monitoring, configuration, updating, and diagnosis of all Yealink audio and video device peripherals remotely through the Yealink Device Management Platform/Cloud Service.

Yealink ZVC S90 Specifications

• Package Content
  • MCore Pro, Gen-3 Mini-PC
  • MTouch Plus, Gen-3 touch panel
  • AVHub, audio and video processor
  • 2 x UVC86 USB PTZ camera
  • 2 x WPP30 wireless presentation pod
  • Room Sensor, meeting room sensor
• Preload
  • Windows 10 IoT Enterprise X64 / Windows 11* IoT Enterprise X64
  • Windows 10 IoT Enterprise License
  • Zoom Rooms App
  • Yealink Room Connect

• MCore Pro, Gen-3 Mini-PC
  • 11th Gen Intel® Core i5
  • Memory: 8 GB (2 x 4GB)
  • Storage: 128 GB SSD
  • 3x HDMI video output with CEC supported
  • 0
  • Kernel DMA
  • EDID
  • Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
  • Bluetooth: BT 5.2
  • 1 x Yealink MTouch port (RJ45), connect to MTouch Plus / MTouch E2
  • 4 x USB 3.0 Type-A
  • 1 x 10/100/1000M Ethernet port
  • 1 x Power port
  • 1 x Security lock slot, Integrated cable management
• MTouch Plus
  • 6-inch narrow bezel IPS display
  • 1920 x 1080 video resolution
  • Angle between screen and desktop (30° ~ 70°)
  • Adjustable angle of support frame (50° ~ 180°)
  • Support wired and wireless (with WPP30) content sharing
  • Support multi-screen control*
  • Support third-party screen sharing*
  • Support external PD power supply to power the sharing device
  • Support HDMI/USB-C video input
  • Support desktop placement, desktop fixed, wall-mounted deployment
• RoomSensor
  • Detection angle: 120°
  • Adjustable detection angle: ±20°
  • Operating temperature: 0-40℃
  • Operating humidity: 10-95%
  • Power: Battery powered, 4-year life
• AVHub, audio and video processor
  • 2 x USB-A port
  • 1 x USB-B port
  • 1 x Codec port
  • 7 x Yealink VCH port (RJ-45)
  • 1 x RCA in/out interface
  • 1 x 6.3mm Line in interface
  • 1 x 6.3mm Line out interface
  • 1 x power interface
  • Dividable and merging meeting rooms are supported
  • Support intelligent multi-speaker tracking
  • Support wireless BYOD*
• UVC86 USB PTZ Camera
  • 4K Sensor
  • 4 × HD zoom (12x optical, 1.7x digital)
  • Angle of view:
    • -90° DFOV, 81° HFOV, 50° VFOV (Telephoto lens)
    • -120° DFOV, 110° HFOV, 78° VFOV (Panoramic lens)
  • Auto-framing
  • Speaker tracking
  • Presenter tracking, support area trigger and gesture control
  • Multi-focus
  • Picture-in-picture
  • Up to 9 preset positions can be set
  • Horizontal rotation: 200°
  • Vertical rotation: 130°
  • 1 x HDMI output
  • 1 x Yealink microphone port(RJ-45)
  • 1 x USB 3.0 Type-B port
  • 1 x USB 2.0 Type-A Port
  • 1 x Power Port
  • 1 x Security Lock
  • 1 x Reset Hole
• Package Features
  • W/CTN: 12.1 kg
  • W/CTN: 13.8 kg
  • Carton Meas: 935 mm x 413 mm x 312 mm
