Yeastar K2 Lite Dubai

Rating

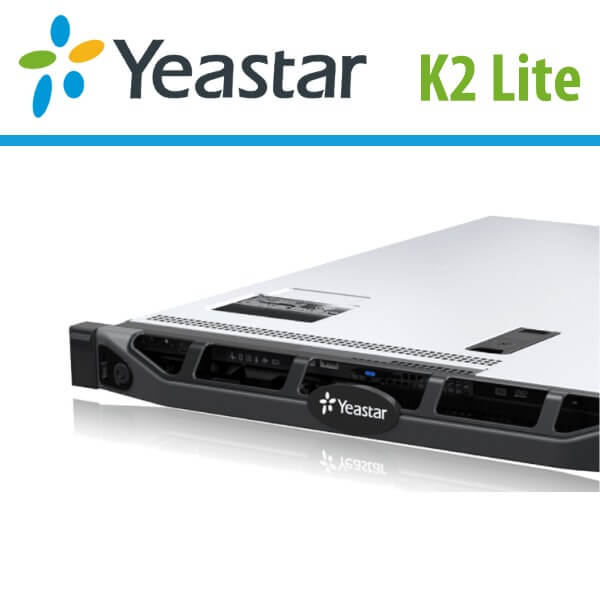

Yeastar K2 Lite Dubai

The Yeastar K2 Lite Dubai is a robust IP PBX system, specifically designed for medium to large enterprises. It efficiently supports up to 1000 users, making it an ideal communication solution for both current and future needs, especially for mobile workers using the Linkus UC Softphone.

Description

Yeastar K2 Lite IP PBX Dubai

The Yeastar K2 Lite Dubai is a robust IP PBX system, specifically designed for medium to large enterprises. It efficiently supports up to 1000 users, making it an ideal communication solution for both current and future needs, especially for mobile workers using the Linkus UC Softphone. Combining a wealth of telephony features with exceptional reliability, the Yeastar K2 Lite ensures an optimal communication experience. This IP PBX system can seamlessly integrate with Yeastar Gateways, accommodating FXS, FXO, GSM, WCDMA, ISDN BRI, and E1/T1/PRI ports. It supports 1000 users, handles 200 concurrent calls, and manages up to 400 VoIP trunks. Additionally, it includes the Linkus Unified Communications App for both desktop and mobile, and its web-based GUI configuration offers an intuitive, user-friendly interface with no learning curve.

Key Features and Benefits:

  • Support up to 1000 users, 200 concurrent calls, and 400 VoIP trunks
  • Robust enterprise-level features to enhance communication
  • Linkus Unified Communications App for Desktop and Mobile
  • Configure IP phones and Yeastar gateways in bulk and saves time substantially
  • Redundancy: a highly available system with two K2 systems for business continuity
  • Easy management and full control over the system with an intuitive Web-based GUI
  • Ideal solutions for large enterprises with a single site or complex and multi-site network
  • Reliable and Secure System
    • Yeastar K2 Lite IP PBX supports redundancy with two Yeastar K2-Lite systems. It also supports TLS and SRTP security encryption which safeguards your network system from malicious cyber hackers or any malware that could lead to corruption or loss of important information.
  • Rich Telephony Features
    • The K2 Lite is equipped with many rich features that enhance the general communication experience. Some of the important features available on the robust IP PBX Ghana include Auto Provisioning, Linkus, IVR, Video Calls, Hot standby, CDR, Conference calls, Queue, Paging Intercom, Call Recording, SIP Forking, and many others.
  • Linkus Unified Communications App
    • Like S-Series VoIP PBX, the Yeastar K2-Lite IP PBX Dubai supports Linkus Desktop and Mobile Client, which transforms your computer desktop and mobile phone into an office extension and stays connected anywhere at any time.
  • Easy User Interface
    • The Yeastar K2 Lite is equipped with a simple and intuitive Web-based configuration that saves you loads of time during its operation. Setting up the robust Yeastar K2 Lite IP PBX Dubai does not require any technical expertise of its user.
  • Cost-Effective
    • The Yeastar K2 Lite is an affordable IP telephony solution that does not interfere with your existing analog telephony system. It allows you to easily transform your communication experience by converting your analog telephone system to IP-based networks at an affordable cost.
  • HD Voice Quality
    • The Yeastar K2 Lite IP PBX series supports a number of voice compression codecs including 711(alaw/ulaw),.722, G.726, G.729A, GSM, ADPCM. It also uses noise suppression technologies such as Echo Cancellation and Jitter Buffer to deliver crystal clear sounds while filtering out any background noises which may interfere with communication during voice calls.
  • Automated – Provisioning – TFTP/HTTP/HTTPS
    • The Yeastar K2 Lite IP PBX has the ability to deploy an information technology or telecommunications service by using embedded pre-defined procedures that are carried out electronically without requiring any human intervention, thus making it very reliable and convenient.
  • Fax Support
    • The Yeastar K2 Lite IP PBX is configured to support T.38 Fax which enables you to create Fax-over-IP. These are simply ITU protocols that dictate how fax audio traverses a packet-switched network, such as the Internet or a company’s LAN/WAN, reliably. In order for fax audio to traverse a packet-switched network like the Internet, the analog signal used by fax machines must be converted into digital packets.

Specifications

Hardware Requirements:

Recommended Server: Dell EMC PowerEdge:  R240

CPU    Intel(R) Xeon(R) CPU E-2124G

  • Cores: 4
  • Threads: 4
  • CPU Frequency: 3.4GHz

RAM: 8 GB

Hard Disk (Call Recording Disabled): 50 GB

Hard Disk (Call Recording Enabled): 1 TB

Supported Virtual Machines

  • VMware 12.0 or later
  • Hyper-v-6.3.9600.16384 or later
  • KVM 2.5.0 or later
  • ESXi 6.0 or later

Functional Specifications:

  • Users: 1000
  • Max Concurrent Calls: 200
  • VoIP Trunks: 400 (Add Yeastar VoIP Gateways via VoIP trunks)
  • Protocol: SIP (RFC3261), IAX2
  • Transport Protocol: UDP, TCP, TLS, SRTP
  • Voice Codec: G711 (alaw/ulaw), G722, G726, G729A, GSM, Speex, ADPCM, iLBC
  • Video Codec: H263, H263P, H264, MPEG4
  • DTMF            In-band, RFC4733, RFC2833, SIP INFO
  • IP Services: Static IP, DHCP, VPN, Firewall, VLAN, DDNS, PPPoE, QoS, Static NAT, STUN
  • Voicemail: 40000 min (expandable)
  • Firewall: Yes
  • T.38 Fax:Yes
  • Hot Standby: Yes
  • App Center: Linkus Server, Phone Provisioning, LDAP Server, Conference Panel, VPN Server, Billing App, Hotel App
